Beijing Chenxing Huanyu High Technology Development Co., Ltd.
2 Years
| Ask Lasest Price | |
| Brand Name : | HPE |
| Model Number : | HPE ProLiant DL325 Gen10 Plus v2 Server |
| Supply Ability : | 10000 Piece/Pieces per Month HPE ProLiant DL325 Gen10 Plus v2 Server |
| Price : | $3,200.00 - $3,500.00/pieces |

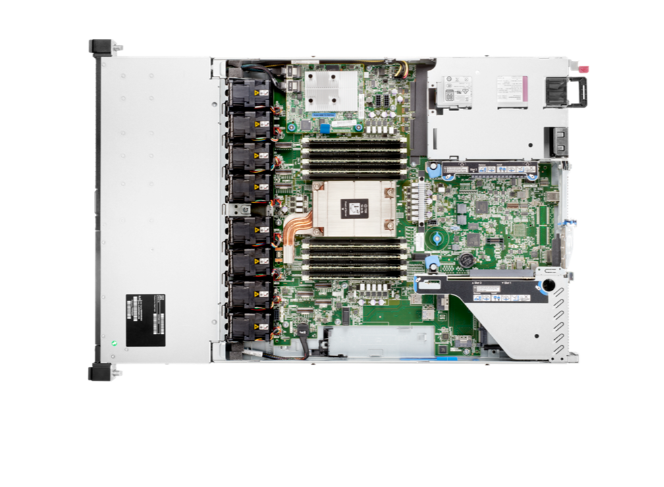

HPE ProLiant DL325 Gen10 Plus v2 Server
The HPE ProLiant DL325 Gen10 Plus v2 is a secure and versatile single socket server for virtualization, I/O intensive and storage intensive workloads.
Powered by the 3rd generation AMD® EPYC® 7003 Series processor, the HPE ProLiant DL325 Gen10 Plus v2 offers greater processing power. On top of that, the chassis is smaller compared to the previous generation providing better compatibility to your infrastructure. Tri-mode RAID controller support provides flexibility to support across SAS/SATA/NVMe types of storage options.
This 1P, 1U server delivers an exceptional balance of processor, memory and I/O for 2P performance at 1P TCO. Get the most ou your virtualized environment with this versatile server
Processor | It supports one AMD EPYC Milan/ MilAN-X processor, each with up to 64 cores and a maximum power of 280W |
Memory | Supports up to 16 DDR4 DIMMs at a rate of up to 3200MT/s, RDIMMs or LRDIMMs, and the maximum capacity of a single CPU is 4TB |
Memory controller | HPE intelligent array module controller or vertical card can be selected |
Storage | Supports up to eight 2.5-inch SATA/SAS hard disks Supports up to four 3.5-inch SATA/SAS hard disks Support for NVMe U.2 and U.3 SSDS |
Network | Optional Network adapters based on standard PCIe slots The OCP 3.0 NIC is optional |
Expansion Slots | Three PCIe 4.0 slots are provided as a standard |
Interface | Rear VGA port, 4 USB ports |
GPU Support | Up to 2 single-width GPU cards |
CD-ROM Device | Support external optical drive; Some models support built-in optical drives |
Management | iLO Standard Edition is standard, and iLO Advanced Edition and OneView Advanced Edition are optional Supports HPE iLO 5, SUM, and RESTful interface tools Support for mobile application software APP |
Power Supply and Heat Dissipation | Optional up to 1600W 1+1 hot swap redundant power supply, support up to 96% titanium; Supports hot-swappable redundant fans |
Operating Temperature | 10℃ - 35℃ |
Dimensions | 42.8mm(H) x 434.6mm(W) x 826.2mm(D) (Short chassis) |
What’s New
• Supports the latest AMD EPYC 7003 Series processor with up to 280W
• Chassis is less than 1 meter of depth
• Support for Tri-mode storage controllers for SAS/SATA/NVMe drives
• New Basic Carrier SAS/SATA/NVMe drives.
• Support for up to 10 SFF/4 LFF drives
• European Union (EU) Lot 9 regulation

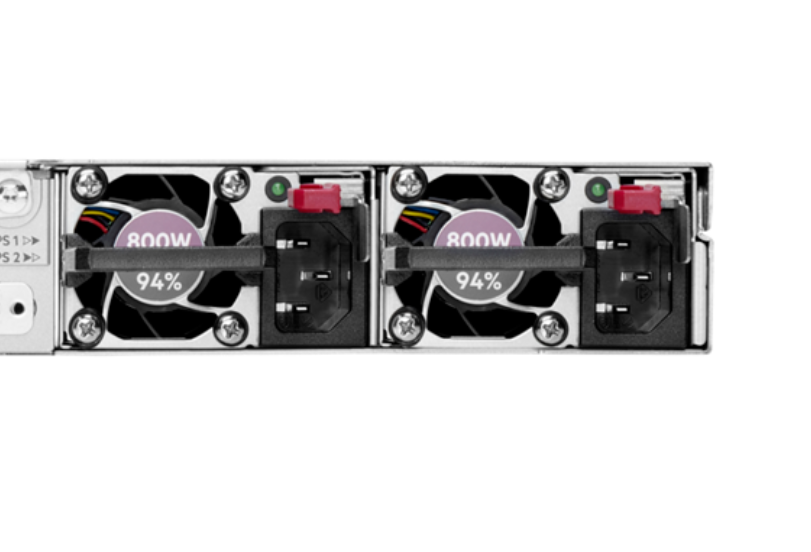

Power Supply
• HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit Notes: Available in 94% Power Efficiency.
• HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit Notes: Available in 94% Power Efficiency.
• HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit Notes: − Available in 96% Power Efficiency. − 200-240VAC power input only.
• HPE 800W Flex Slot Universal Hot Plug Low Halogen Power Supply Kit Notes: − Available in 94% Power Efficiency. − 277VAC power input.
• HPE 800W Flex Slot 48VDC Hot Plug Low Halogen Power Supply Kit Notes: − Available in 94% Power Efficiency. − -48VDC power input.
• HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit Notes: − Available in 94% Power Efficiency. − 200-240VAC power input only.
• HPE 1600W 48VDC Power Supply Kit
Processor
Notes:
− All AMD EPYC processors can support up to 4TB of memory each.
− Rome processors can’t support 2 DIMM per channel @3200MT/s. Rome processors support 2DPC @2933MT/s.
Memory
Advanced ECC Advanced ECC uses single device data correction to detect and correct single and all multibit error that occurs within a single DRAM chip
Type: HPE DDR4 SmartMemory Registered (RDIMM), Load Reduced (LRDIMM)
DIMM Slots Available 16 16 DIMM slots per processor, 8 channels per processor, 2 DIMMs per channel
Maximum capacity (RDIMM) 1.0 TB 16 x 64 GB RDIMM @ 3200 MT/S at 1 or 2 DPC
Maximum capacity (LRDIMM) 4.0 TB 16 x 256 GB LRDIMM @ 3200 MT/s at 1 DPC, 2933 MT/s at 2 DPC
Notes: The maximum memory speed is dependent on the DIMM selection.
Chassis Types
• 4 LFF SAS/SATA, with optional Optical Drive options
• 8 SFF SAS/SATA, with optional 2SFF SAS/SATA or 2 NVMe and Optical Drive options
• 8 SFF NVMe U.2/U.3, with optional 2SFF SAS/SATA or 2 NVMe and Optical Drive options
Notes:
− Mixing LFF & SFF is not supported
− When a 8 SFF chassis is selected, minimum one 8 SFF SAS/SATA, 8 SFF NVMe U.3 or 8 SFF NVMe U.2 backplane kit must be selected
− When a 4 LFF chassis is selected, one 4 LFF SAS/SATA backplane kit must be selected
− The 8 SFF can be upgraded with either an additional 2 SFF drive kit for a total 10 SAS/SATA drives or 2SFF NVMe Kit for a total of 8 SAS/SATA + 2 NVMe drives or an optional Optical Drive
− The 8 SFF NVMe chassis can be upgraded with either an additional 2SFF NVMe kit for a total of 10 NVMe drives or 2SFF drive kit for a total of 8NVMe + 2 SAS/SATA drives or an optional Optical Drive
Essential RAID Controller
• HPE Smart Array E208i-a SR G10 LH Controller
• HPE Smart Array E208e-p SR Gen10 Controller
• HPE Smart Array E208e-p SR Gen10 Controller
Performance RAID Controller
• HPE Smart Array P408i-a SR G10 LH Controller
• HPE Smart Array P408e-p SR Gen10 Controller
• HPE Smart Array P408i-p SR Gen10 Controller
• HPE Smart Array P816i-a SR G10 LH Controller
Notes: Performance RAID Controllers require the HPE 12W Smart Storage Battery (782961-B21) which is sold separately.
Tri-Mode RAID Controller
• HPE Tri-Mode MR216i-a Gen10 Plus Controller
• HPE Tri-Mode MR216i-p Gen10 Plus Controller
• HPE Tri-Mode MR416i-a Gen10 Plus Controller
• HPE Tri-Mode MR416i-p Gen10 Plus Controller
• HPE Tri-Mode SR416i-a Gen10 Plus Controller
• HPE Tri-Mode SR932i-p Gen10 Plus Controller
Notes: MR216i-a and MR216i-p controllers do not need the support of a smart storage battery.
Our service:
warranty:3 years
packaging details:original HPE packing
delivery time:shipped in one day after payment
FAQ
|
|
